Safety construction equipment for bridge crash barrier guardrails and their formwork

The bridge crash barrier guardrail formwork safety construction vehicle not only enables self-assembling of the platform units but is also equipped with a crane for real-time adjustment of hoist basket height according to actual conditions; additionally, it features a cargo compartment, ensuring efficient and convenient operation.

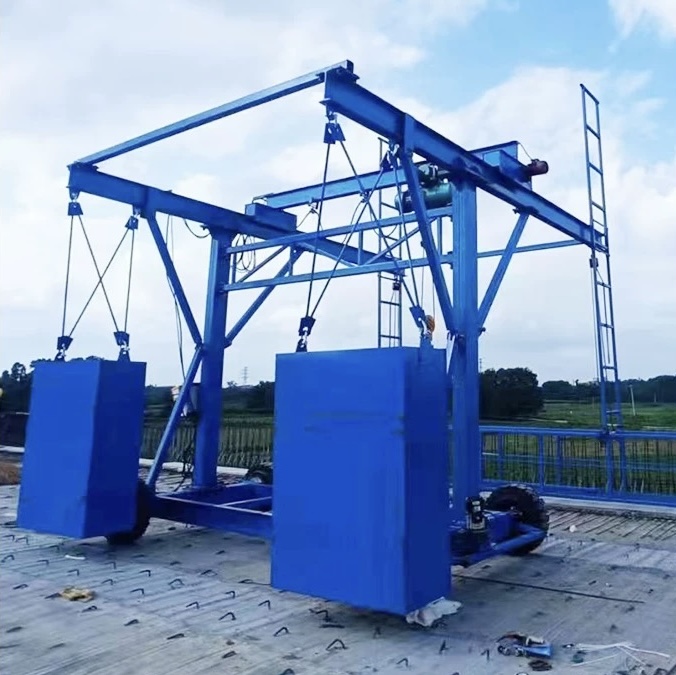

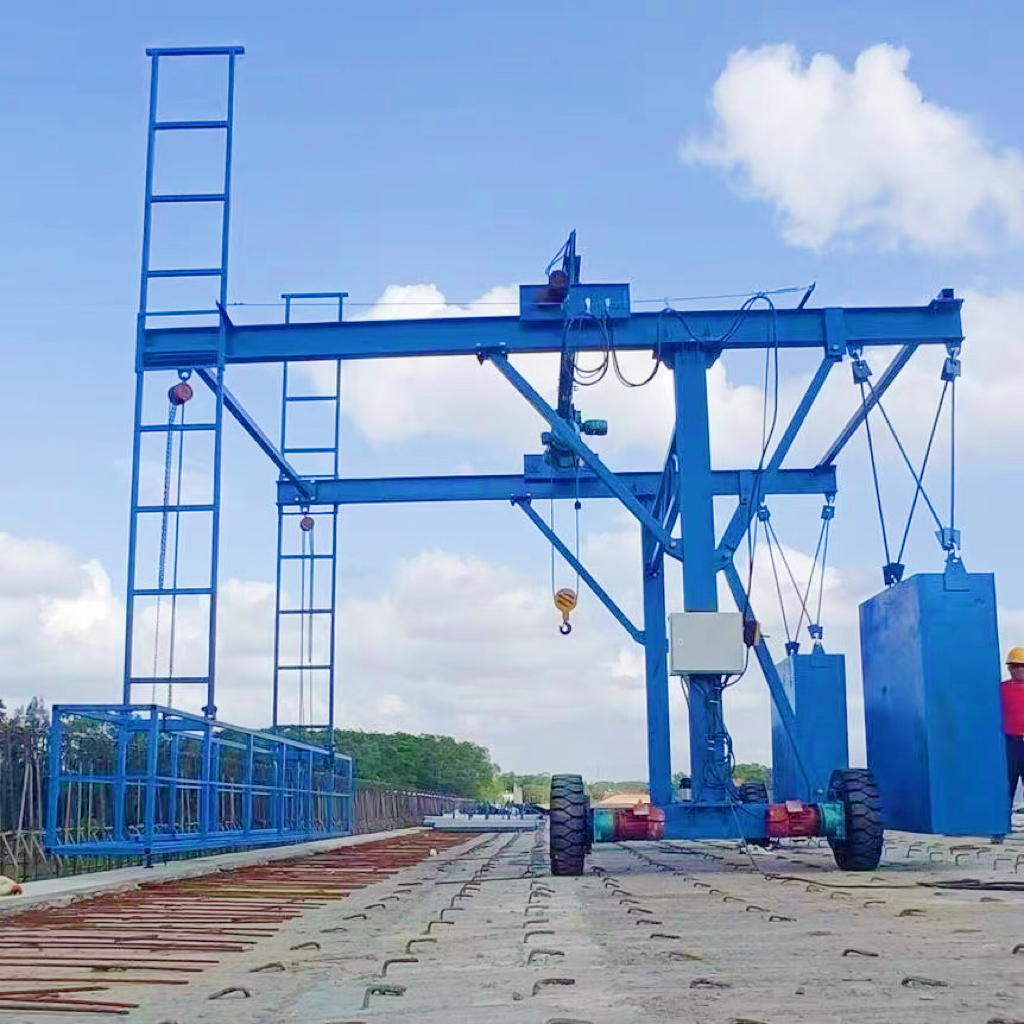

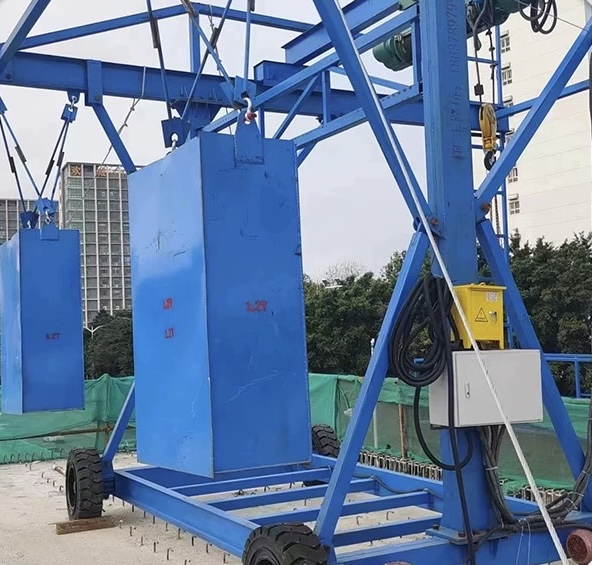

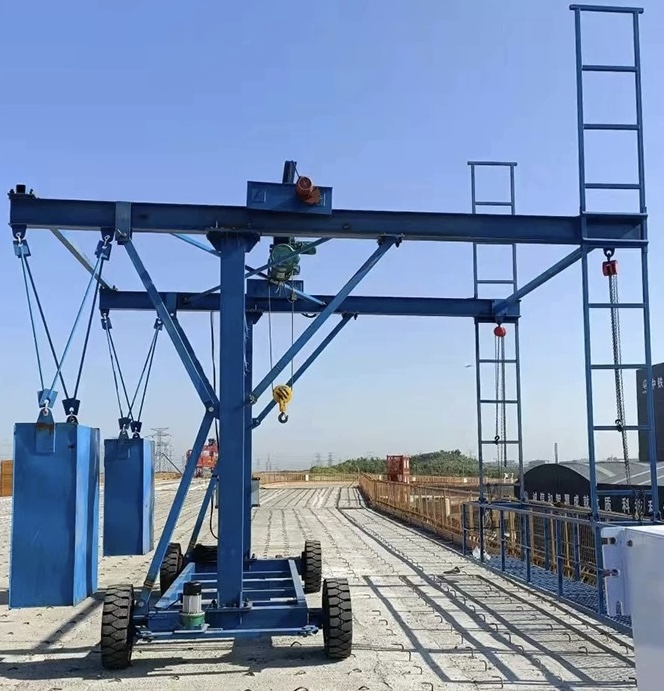

The bridge crash barrier guardrail formwork system features a safety construction vehicle equipped with a lifting mechanism utilizing a rotary cantilever crane, enabling self-assembling of the platform units without additional cranes during installation. This design eliminates the need for separate loading platforms or hoisting baskets, significantly improving efficiency. When adjusting the basket height according to site conditions, operators can instantly modify it by adjusting the pin positions between vertical sliding columns and cantilever beams using the crane, ensuring optimal operational performance.

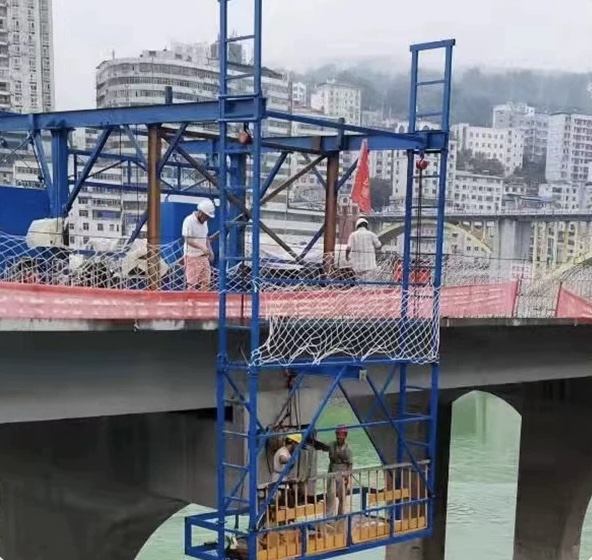

The construction hoist basket for bridge crash barrier guardrail formwork safety equipment consists of two components: a vertical sliding column and a hoist basket. The vertical sliding column allows adjustment of the basket height, while the basket can be rotated to expand working space, enhancing construction efficiency. In non-operational states, only the crawler base and cargo platform remain assembled; all other components—including crane columns, cross beams, cantilever beams, vertical sliding columns, and the hoist basket—are disassembled, significantly reducing storage and transportation space requirements and ensuring ease of use.
